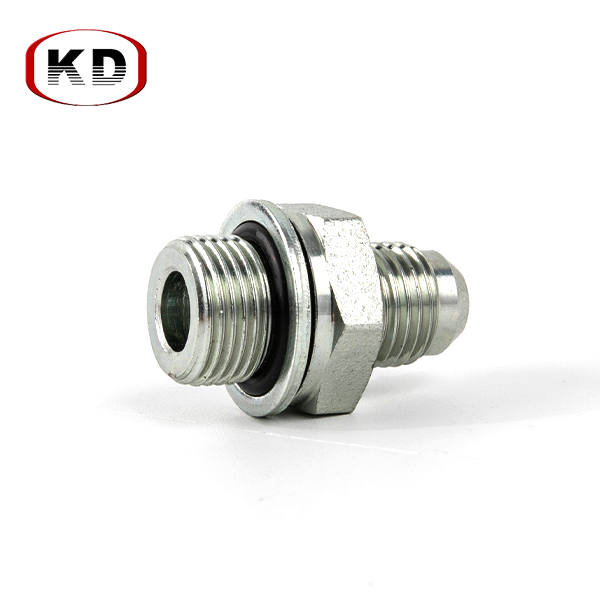

JIC Male 74°Conebsp Male Captive Seal Hydraulic Adapter Tube Fitting

Description:

The JIC Male 74°Conebsp Male Captive Seal Hydraulic Adapter Tube Fitting conforming to the Joint Industry Council (JIC) standards, ensuring compatibility and standardized overall performance throughout diverse hydraulic applications. The 74-diploma cone layout enhances the fitting's ability to withstand high-pressure conditions, presenting a reliable seal and stopping fluid leakage in hydraulic environments.
Additionally, the male captive seal design of this hydraulic adapter tube fitting similarly contributes to its reliability and simplicity of use. The captive seal, commonly an O-ring or a comparable sealing element, is securely incorporated into the fitting, reducing the threat of misplacement in the course of installation or upkeep.

+86 186 6855 0688 [email protected]
Get a quote

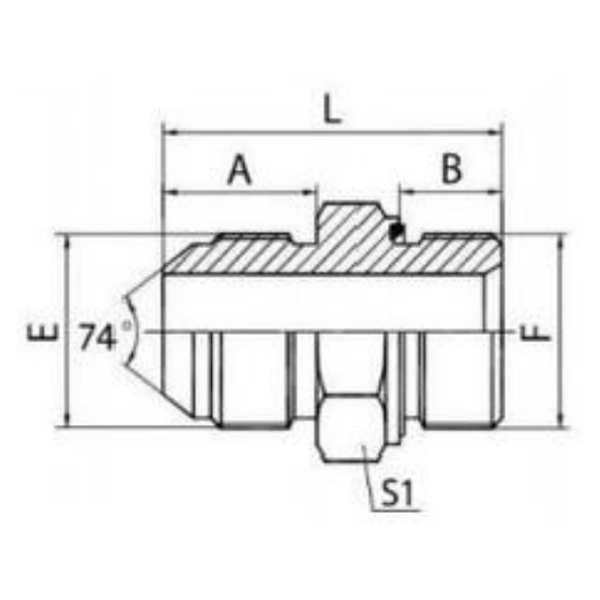

  • PART NO.
    THREAD
    CAPTIVE
    DIMENSIONS

    E
    F

    F
    A
    B
    L
    S1

    1JB-04-02ED
    7/16"X20
    G1/8"X28

    ED-B02
    14
    8
    29.5
    14

    1JB-04ED
    7/16"X20
    G1/4"X19

    ED-B04
    14
    12
    34
    19

    1JB-04-06ED
    7/16"X20
    G3/8"X19

    ED-B06
    14
    12
    34.5
    22

    1JB-04-08ED
    7/16"X20
    G1/2"X14

    ED-B08
    14
    14
    41
    27

    1JB-05-04ED
    1/2"X20
    G1/4"X19

    ED-B04
    14
    12
    34
    19

    1JB-05-06ED
    1/2"X20
    G3/8"X19

    ED-B06
    14
    12
    34.5
    22

    1JB-06-02ED
    9/16"X18
    G1/8"X28

    ED-B02
    14.1
    8
    29.5
    17

    1JB-06-04ED
    9/16"X18
    G1/4"X19

    ED-B04
    14.1
    12
    34
    19

    1JB-06ED
    9/16"X18
    G3/8"X19

    ED-B06
    14.1
    12
    34.5
    22

    1JB-06-08ED
    9/16"X18
    G1/2"X14

    ED-B08
    14.1
    14
    41
    27

    1JB-08-04ED
    3/4"X16
    G1/4"X19

    ED-B04
    16.7
    12
    37
    22

    1JB-08-06ED
    3/4"X16
    G3/8"X19

    ED-B06
    16.7
    12
    37.5
    22

    1JB-08ED
    3/4"X16
    G1/2"X14

    ED-B08
    16.7
    14
    43.5
    27

    1JB-10-08ED
    7/8"X14
    G1/2"X14

    ED-B08
    19.3
    14
    46.5
    27

    1.1B-10-12EC
    7/8"X14
    G3/4"X14

    ED-B12
    19.3
    16
    47.5
    32

    1JB-12-08ED
    1.1/16"X12
    G1/2"X14

    ED-B08
    21.9
    14
    48.5
    30

    1JB-12ED
    1.1/16"X12
    G3/4"X14

    ED-B12
    21.9
    16
    50
    32

    1JB-12-16ED
    1.1/16"X12
    G1"X11

    ED-B16
    21.9
    18
    56
    41

    1JB-16-12ED
    1.5/16"X12
    G3/4"X14

    ED-B12
    23.1
    16
    53
    36

    1JB-16ED
    1.5/16"X12
    G1"X11

    ED-B16
    23.1
    18
    57
    41

    1JB-16-20ED
    1.5/16"X12
    G1.1/4"X11

    ED-B20
    23.1
    20
    61
    50

    1JB-20-16ED
    1.5/8"X12
    G1"X11

    ED-B16
    24.3
    18
    58
    46

    1JB-20ED
    1.5/8"X12
    G11/4'X11

    ED-B20
    24.3
    20
    62
    50

    1JB-20-24ED
    1.5/8"X12
    G1.1/2"X11

    ED-B24
    24.3
    22
    64
    55

    1JB-24-20ED
    1.7/8"X12
    G1.1/4"×11

    ED-B20
    27.5
    20
    65.5
    50

    1JB-24ED
    1.7/8"X12
    G1.1/2"X11

    ED-B24
    27.5
    22
    67.5
    55
