Metric Straight DIN High temperature stable Adapters UNF Thead with O-ring

Description:

Metric Straight DIN High temperature stable Adapters UNF Thead with O-rings are precision-engineered components designed to facilitate steady and reliable connections in high-temperature environments. These adapters adhere to the Deutsche Industrie Normen (DIN) standards, making sure a standardized and like minded healthy within business structures. The metric straight design allows for a straightforward and efficient connection,minimizing capability factors of failure. The use of Unified Fine (UNF) threads enhances the threading mechanism, promoting a good and stable seal that is essential for withstanding extended temperatures.

In addition to their robust creation, those adapters feature high-temperature balance, making them suitable for applications where excessive warmth is a factor. The adapters contain O-rings, which function effective seals to prevent leakage and maintain device integrity beneath hard conditions.

Get a quote

	Mpa

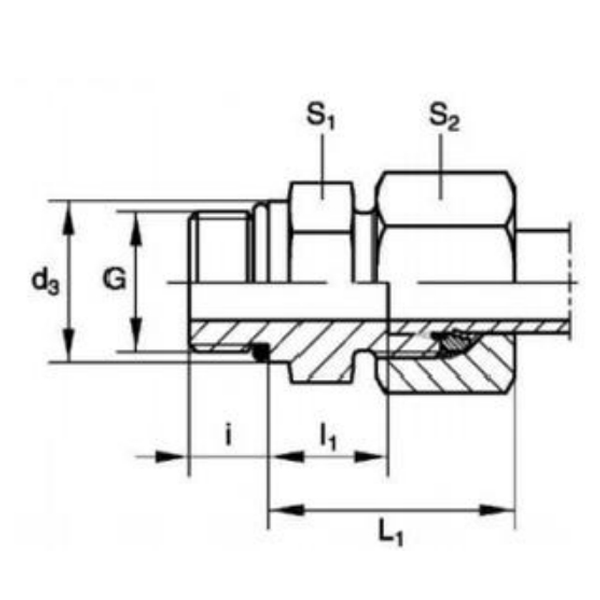

PART			G	d3	i	11	L1	S1	S2		bar
NOMBER		TUBE
		O D
1C0-08L-04	L	8	7/16-20UNF-2A	14.4	9	10	25	17	17	OR8.92X1.83	315








1CO-10L-04		10	7/16-20UNF-2A	14.4	10	11	26	17	19	OR8.92X1.83	315
1CQ-12L-06		12	9/16-18UNF-2A	17.6	10	11	26	19	22	OR11.9X1.98	315
1CO-12L-08		12	3/4-16UNF-2A	22.3	11	13	28	24	22	OR16.36X2.20	315
1CO-12L-10		12	7/8-14UNF-2A	25.5	12.7	14.3	29	27	22	OR19.18X2.46	315
1CO-15L-08		15	3/4-16UNF-2A	22.3	11	14	29	24	27	OR16.36X2.20	315
1CO-15L-10		15	7/8-14UNF-2A	25.5	12.7	15.3	30	27	27	OR19.18X2.46	315
1CO-18L-08		18	3/4-16UNF-2A	22.3	11	14.5	31	27	32	OR16.36X2.20	315
1CO-18L-10		18	718-14UNF-2A	25.5	12.7	14.8	31	27	32	OR19.18X2.46	315
1CQ-22L-10		22	7/8-14UNF-2A	25.5	12.7	16.8	33	32	36	OR19.18X2.46	160
1CO-22L-12		22	1-1/16-12UN-2A	31.9	15	16.5	33	32	36	OR23.47X2.95	160
1CO-22L-16		22	1-5/16-12UN-2A	38.2	15	17.5	34	41	36	OR29.74X2.95	160
1CO-28L-12		28	1-1/16-12UN-2A	31.9	15	17.5	34	41	41	OR23.47X2.95	160
1CO-28L-16		28	1-5/16-12UN-2A	38.2	15	17.5	34	41	41	OR29.74X2.95	160
1CO-35L-16		35	1-5/16-12UN-2A	38.2	15	17.5	39	46	50	OR37,46X2.95	160
1CO-35L-20		35	1-5/8-12UN-2A	47.7	15	17.5	39	50	50	OR37.46X3	160
1CO-42L-20		42	1-5/8-12UN-2A	47.7	15	19	42	55	60	OR37.46X3	160
1CO-08S-04	S	8	7/16-20UNF-2A	16	9	15	30	17	19	OR8.92X1.83	630







1C0-10S-06		10	9/16-18UNF-2A	17.6	10	14.5	31	19	22	OR11.9X1.98	630
1G0-12S-06		12	9/16-18UNF-2A	17.6	10	14.5	31	22	24	OR11.9X1.98	630
1CO-12S-08		12	3/4-16UNF-2A	22.3	11	17.5	34	24	24	OR16.36X2.20	630
1CO-16S-08		16	3/4-16UNF-2A	22.3	11	15.5	34	24	30	OR16,36X2,20	400
1CO-16S-10		16	7/8-14UNF-2A	25.5	12.7	18.8	37	27	30	OR19.18X2.46	400
1CO-20S-08		20	3/4-16UNF-2A	22.3	44	20.5	42	32	36	OR16,36X2.20	400
1CO-20S-10		20	7/8-14UNF-2A	25.5	12.7	20.8	42	32	36	OR19.18X2.46	400
1CO-20S-12		20	1-1/16-12UN-2A	31.9	15	20.5	42	32	36	OR23.47X2.95	400
1CO-25S-12		25	1-1/16-12UN-2A	31.9	15	23	47	36	46	OR23,47X2.95	400
1CO-25S-16		25	1-5/16-12UN-2A	38.2	15	23	47	41	46	OR29.74X2.95	400
1CO-30S-16		30	1-5/16-12UN-2A	38.2	15	23.5	50	46	50	OR29.74X2.95	400
1CO-30S-20		30	1-5/8-12UN-2A	47.7	15	23.5	50	50	50	OR37.46X3	400
1CO-38S-20		38	1-5/8-12UN-2A	47.7	15	26	57	55	60	OR37.46X3	315
