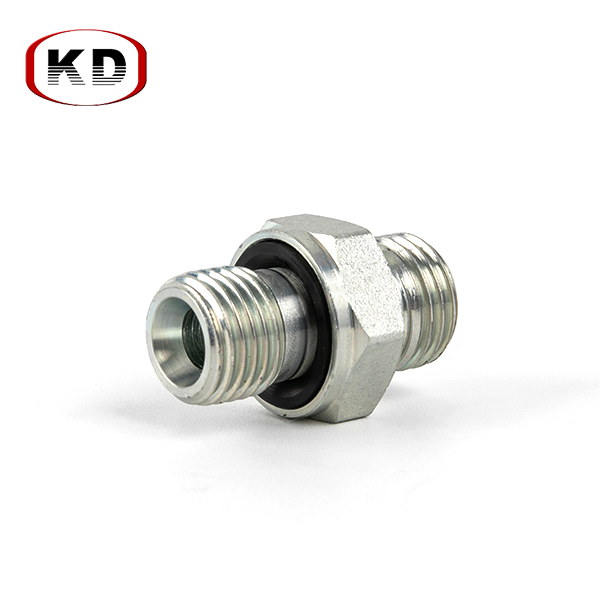

Metric Straight DIN Adapters BSP Thread Stud End With ED-Ring Sealing

Description:

The Metric Straight DIN Adapters BSP Thread Stud End With ED-Ring Sealing are specialized components meticulously crafted for hydraulic and pneumatic systems, ensuring dependable and leak-free connections. A distinguishing feature of these adapters lies in their ED ring sealing mechanism. The ED ring, also referred to as an elastic O-ring, is thoughtfully integrated into the adapter's design, delivering exceptional sealing performance. This ED ring establishes a formidable barrier between interconnected components, effectively thwarting liquid leakage, even in high-pressure and vibration-prone environments. It bolsters system reliability and safety by maintaining an airtight seal between connecting elements. The Metric Straight DIN Adapters with BSP Thread Stud End and ED-Ring Sealing are prominently utilized in industries where fluid transmission and containment are mission-critical, including hydraulic machinery, pneumatic systems, and industrial equipment.

+86 186 6855 0688 [email protected]
Get a quote

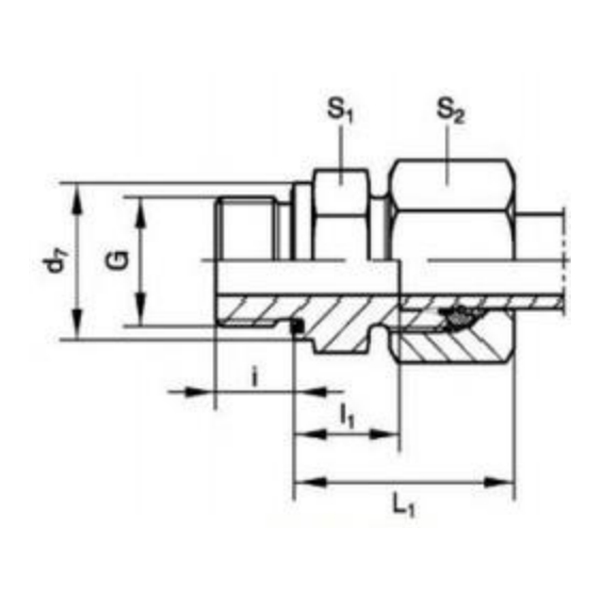

  • PART NOMBER

    Mpa

    TUBE O D

    G

    L1

    11

    i

    S2

    S1

    d7

    bar

    1CG-06L-02ED

    L

    6

    G1/8A

    23

    8.5

    8

    14

    14

    14

    315

    1CG-06L-04ED

    6

    G1/4A

    25

    10

    12

    14

    19

    19

    315

    1CG-06L-06ED

    6

    G3/8A

    26

    11.5

    12

    14

    22

    22

    315

    1CG-06L-08ED

    6

    G1/2A

    27

    12

    14

    14

    27

    27

    315

    1CG-08L-04ED

    8

    G1/4A

    25

    10

    12

    17

    19

    19

    315

    1CG-08L-06ED

    8

    G3/8A

    26

    11.5

    12

    17

    22

    22

    315

    1CG-08L-08ED

    8

    G1/2A

    27

    12

    14

    17

    27

    27

    315

    1CG-10L-04ED

    10

    G1/4A

    26

    11

    12

    19

    19

    19

    315

    1CG-10L-06ED

    10

    G3/8A

    27

    12.5

    12

    19

    22

    22

    315

    1CG-10L-08ED

    10

    G1/2A

    28

    13

    14

    19

    27

    27

    315

    1CG-12L-04ED

    12

    G1/4A

    27

    12

    12

    22

    19

    19

    315

    1CG-12L-06ED

    12

    G3/8A

    27

    12.5

    12

    22

    22

    22

    315

    1CG-12L-08ED

    12

    G1/2A

    28

    13

    14

    22

    27

    27

    315

    1CG-12L-12ED

    12

    G3/4A

    29

    14

    16

    22

    32

    32

    315

    1CG-15L-06ED

    15

    G3/8A

    29

    13.5

    12

    27

    24

    22

    315

    1CG-15L-08ED

    15

    G1/2A

    29

    14

    14

    27

    27

    27

    315

    1CG-15L-12ED

    15

    G3/4A

    30

    15

    16

    27

    32

    32

    315

    1CG-18L-06ED

    18

    G3/8A

    30

    14

    12

    32

    27

    22

    315

    1CG-18L-08ED

    18

    G1/2A

    31

    14.5

    14

    32

    27

    27

    315

    1CG-18L-12ED

    18

    G3/4A

    31

    14.5

    16

    32

    32

    32

    315

    1CG-22L-08ED

    22

    G1/2A

    33

    16.5

    14

    36

    32

    27

    160

    1CG-22L-12ED

    22

    G3/4A

    33

    16.5

    16

    36

    32

    32

    160

    1CG-22L-16ED

    22

    G1A

    34

    17.5

    18

    36

    41

    40

    160

    1CG-28L-12ED

    28

    G3/4A

    34

    17.5

    16

    41

    41

    32

    160

    1CG-28L-16FD

    28

    G1A

    34

    17.5

    18

    41

    41

    40

    160

    1CG-28L-20ED

    28

    G1-1/4A

    35

    18.5

    20

    41

    50

    50

    160

    1CG-35L-16ED

    35

    G1A

    39

    17.5

    18

    50

    46

    40

    160

    1CG-35L-20ED

    35

    G1-1/4A

    39

    17.5

    20

    50

    50

    50

    160

    1CG-35L-24ED

    35

    G1-1/2A

    41

    19.5

    22

    50

    55

    55

    160

    1CG-42L-16ED

    42

    G1A

    42

    19

    18

    60

    55

    40

    160

    1CG-42L-20ED

    42

    G1-1/4A

    42

    19

    20

    60

    55

    50

    160

    1CG-42L-24ED

    42

    G1-1/2A

    42

    19

    22

    60

    55

    55

    160
