Metric 24°Female One Piece Hose Fitting Custom

Home / Products / Interlock Hose Fitting / Coupling Interlock Fittings / Metric 24°Female One Piece Hose Fitting

Product category

Custom Forms

  • Metric 24°Female One Piece Hose Fitting
  • Metric 24°Female One Piece Hose Fitting

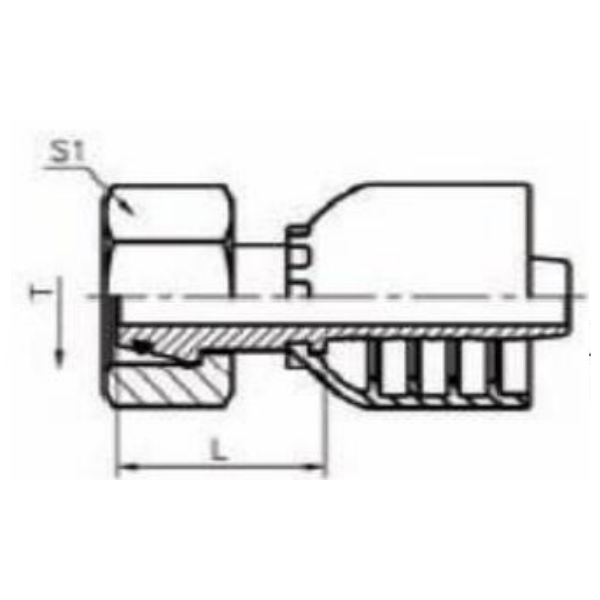

Metric 24°Female One Piece Hose Fitting

Description:

The Metric 24°Female One Piece Hose Fitting is a extensively employed connector applied for linking hydraulic structures and pipelines. Featuring an included layout, it's far in most cases employed to connect oil pipes, hydraulic hoses, and different vital pipeline components. This unique pipe fitting boasts a 24-degree angle and is in particular suitable for high-stress liquid transmission systems. Its woman connection give up is crafted with inner threads to facilitate a steady connection with its corresponding male counterpart, which include the Metric 24° Male fitting. This meticulous design ensures a decent and dependable connection, appreciably lowering the danger of oil leakage.
Typically made from long lasting materials which include metal or stainless steel, the Metric 24° Female One Piece Hot Fitting is engineered to withstand elevated pressure and endure disturbing operational situations. It unearths sizable software throughout diverse industrial sectors, inclusive of production machinery, agricultural gadget, automobile production, and different domains necessitating reliable hydraulic connections.

+86 186 6855 0688 [email protected]
Get a quote
  • PART NUMBER
    HOST
    THREAD
    T
    PIPE
    B
    mm
    L
    mm
    A
    mm
    H2
    mm

    DN
    In
    SIZE






    P204A1-03-12
    5
    3/16"
    03
    M12x1,5
    6
    3
    24,1
    1,2
    14
    P204A1-04-14
    6
    1/4"
    04
    M14x1,5
    8
    4
    24,5
    1,8
    17
    P204A1-04-16
    6
    1/4"
    04
    M16x1,5
    10
    5,5
    26
    2,3
    19
    P204A1-05-16
    8
    5/16"
    05
    M16x1,5
    10
    5,5
    26
    2.3
    19
    P204A1-05-18
    8
    5/16"
    05
    M18x1,5
    12
    7
    26
    2,5
    22
    P204A1-06-18
    10
    3/8"
    06
    M18x1,5
    12
    7
    26,6
    2,5
    22
    P204A1-06-22
    10
    3/8"
    06
    M22x1.,5
    15
    9.5
    30,1
    2.5
    27
    P204A1-08-22
    12
    1/2"
    08
    M22x1,5
    15
    9,3
    29,3
    2,5
    27
    P204A1-08-26
    12
    1/2"
    08
    M26x1,5
    18
    12
    31,3
    2,5
    32
    P204A1-10-26
    16
    5/8"
    10
    M26x1,5
    18
    12
    30,3
    2,5
    32
    P204A1-12-30
    20
    3/4"
    12
    M30x2
    22
    15
    33
    3,5
    36
    P204A1-12-36
    20
    3/4"
    12
    M36x2
    28
    19,5
    34,5
    3.7
    41
    P204A1-16-36
    25
    1"
    16
    M36x2
    28
    19,5
    34,3
    3.7
    41
    P204A1-20-45
    32
    1.1/4"
    20
    M45x2
    35
    26
    39
    4
    50
    P204A1-24-52
    40
    1.1/2"
    24
    M52x2
    42
    32
    39,5
    4,5
    60
